Features:
- New touch control function
- Four optional charging currents: 500mA*4/700mA*4/1000mA *4/2000mA*2;
- Two discharge currents: 250mA*4/500mA*4
- It can charge different batteries of different specifications (18650/26650....../AA/AAA)
- This product uses a separate LCD display, charge and discharge mode (MODE), Voltage (V) Current (mA). Time (h). Capacity (mAh) parameters, at a glance
- CHARGE, DISCHARGE and TEST modes can work simultaneously; independently set charge/discharge capacity detection/normal capacity detection function
- A variety of protection functions: overcharge and over-discharge, short circuit, temperature, 0V voltage activation function, 1.65V-2.2V non-charging function, intelligent identification of bad battery and reverse battery detection protection
- With standard 5V/1000 mA USB output function (only valid when AC power is connected)
Parameters:
- Input voltage: DC 12V/3.0A
- Output voltage:DC 4.2V / DC 1.48V
- Lithium battery charging current: 500mA*4 /700mA*4/1000mA *4 2000mA *2
- NiMH battery charging current: 500mA*4/700mA*4 /1000mA*4
- Rechargeable battery specifications: 26650,21700,18650,18350, 20650,14500, AA, AAA, etc
- Discharge current: 250mA / 500mA
- USB output: 5V---1000mA
- Termination method: intelligent voltage monitoring
- Dimensions: 162mm (length) * 100mm (width) * 36mm (height)
Lii-PD4
Specifications and functions:
- Multi-power input: AC cable 110-240V 50/60Hz (included)/ 12V 1A adapter(selective), four independent charging and micro computer management system
- Charge current intelligent auto-set of total three levels: 500mA /1000mA/2000mA),2000mA is fixed only for slot#4
- Multi-functional LCD charging display: for charging progress 25% - 50% - 75% -100% , battery types: Ni-MH 1.2V , Li-Fe 3.2V, Li-ion 3.7V, Li-ion 3.80V (IMR), charging capacity, voltage and current: 0.5A/1A/2A
- Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.80V li-ion batteries(IMR)
- Refresh for OV battery. It will not charge any battery of1.65 -2.20V (refresh current can be detected only)
- Multi-safety protection function of over-charge and over-discharge, short-circuited, polarity reverse and so on. It can smartly identify broken batteries with much more safety
- Charging at constant voltage and current
Button and LCD:
Button of Mode(Channel button): there are 4 independent buttons separately for each channel. While power supply is connected and battery inserted
- 1) Short click the channel button in 5S to change the battery type. It will start to charge 5 seconds after setting the battery type (3.2V or 3.80V), 1.2V Ni-MH and 3.7V li-ion can be detected automatically, so it needs setting only 3.2V and 3.8V batteries (Note: Battery type can be only selective before charging starts.)
- 2) LCD: While power supply connected, the LCD will light up for 3S: 1) If no battery is inserted, the LCD will display "null" and will be off in the 30S 2) When the battery is inserted and detected, the LCD will show channel number while the battery type image " Li-Ion 3.7V" flashing indicating to set the battery type: this moment if short click the channel button, it can set battery type; if no operation in 5 seconds, it begins by automatic detection(Li-Ion 3.7V or NIMH) then charging percentage image will flash meaning the start of charging. At the same time, the LCD displays also charge voltage, capacity, time and current. When charge completes, it will display"100%"meanwhile it shows "End" on the LCD right down corner
Cautions:
- This charger can charge all cylindrical rechargeable batteries 3.7V Li-Ion, 3.8V IMR, 1.2V Ni-MH/Cd, 3.2VLiFePO4
- Read this manual before use and pay special attention to the recommended charge current, must avoid charging battery beyond the recommended current limit
- If DC input, only 12V 1A is recommended
- Mind heating while charging
- Remove the charger from the power source after charging complete, and remove the battery from the charger at the same time
- For indoor use only
- The displaying data only for reference, please refer to professional instrument for more accurate data
Lii-PL4
Precautions:
- This charger can handle all cylindrical batteries 3.7V Li-ion, 3.8V IMR, 1.2V Ni-MH / Cd, 3.2VLiFePO4
- Read this manual before use and pay special attention to the recommended charging current, needs to be above the recommended current limit
- If DC input, only 12V 1A is recommended
- Spirit heating during loading
- Remove the charger from power source after charging finished, and remove the battery from the charger at the same time
- For the interior only
- The display data for reference only, please refer to professional instrument for more accurate data
Specification and function:
- Multi-power input: AC cable 110-240V 50 / 60Hz (included) / 12V 1A adapter (selective), four independent and microcomputer management system.
- Three charging mode (500mAh / 1000mAh / 2000mAh, 2000mAh current mode is fixed only to the fourth slot.
- The LED charging indicators: both for charging progress: 25% -50% -75% -100% and battery types: Ni-MH 1.2V, Li-Fe 3.2V, Li-ion 3.7V , Li-ion 3.80 V (IMR)
- Automatically identify Li-ion and Ni-MH batteries and manually set the charging mode for LiFePO4 and 3.80V lithium ion batteries (IMR)
- Upgrade for OV battery. there will be no battery of1.65-1.85V (refresh current can only be detected)
- Protection for overcharge and over-discharge and short-circuit. Identify a broken battery and polar reverse polarity protection.
- Charging under constant voltage and current
Button, LED and function:
- Keys: While power supply is connected, 1) Short press (less than 2S) to change the mode, the battery type. It will start to charge 5 seconds after the setting of the battery type (3.2V or 3, 80V), 1.2V Ni-Mh and 3.7V li-ion can be detected automatically, so it only needs adjustment of 3.2V and 3.8V batteries; 2) Change the charging current anytime during the charging process by pressing long (more than 2s) the mode button
- LED: While power is plugged in, all LEDs light immediately 1) If no battery is inserted, the 500mAh LED (one of the three power display LEDs) will stop and others will go away. 2) When battery is inserted and detected, 4 LED charge indicator for the channel will open on taking which 3.7V battery type LED keeps flashing indicating to the battery type, if no operation in 5 seconds, it will start by automatic detection (Li -Ion 3.7V or NIMH) then four LED displays will show the charge status. 3) During the charging process, short-press the mode button to set the battery type within 5 seconds; 4) When no power is connected, insert a battery, it can quickly shows the remaining battery charger volume of the battery.
- LED display graphic reference
Technical specification
- Input: AC cable 110-240V 50 / 60Hz (included) / DC 12V 1A & # 65288; selective & # 65289;
- 2. Output voltage: 4.2V DC for 3.7V Li-Ion -DC 4.35 V for Li-Ion 3.8 V (IMR), DC 3.65 V for LeFePO4, DC 1.48 V for NiMH / NI-Cd
- Output current: Li-ion / IMR / LiFePO4 2000mA * 1 (only for slot # 4), 1000mA * 2, 500mA * 3 500mA * 4, NiMH / NiCd: 1000mA * 2, 500mA * 3 500mA * 4
- Constant voltage, cut-off current: less than 100mA
- Standby current: less than 15mA
Compatible battery types and sizes:
li-ion / IMR / LiFePO4: 26650 & # 65292; 21700 & # 65292; 20700, 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440
NiMH / Cd: AA, AAA & # 65292; SC, C
Size: 133mm x 100mm x 35mm (L x W x H)
Product Specifics:
-
Type: Electric
-
Type: USB
-
Quick charge: Yes
-
Intelligent Charge: Yes
-
Display screen: Yes
-

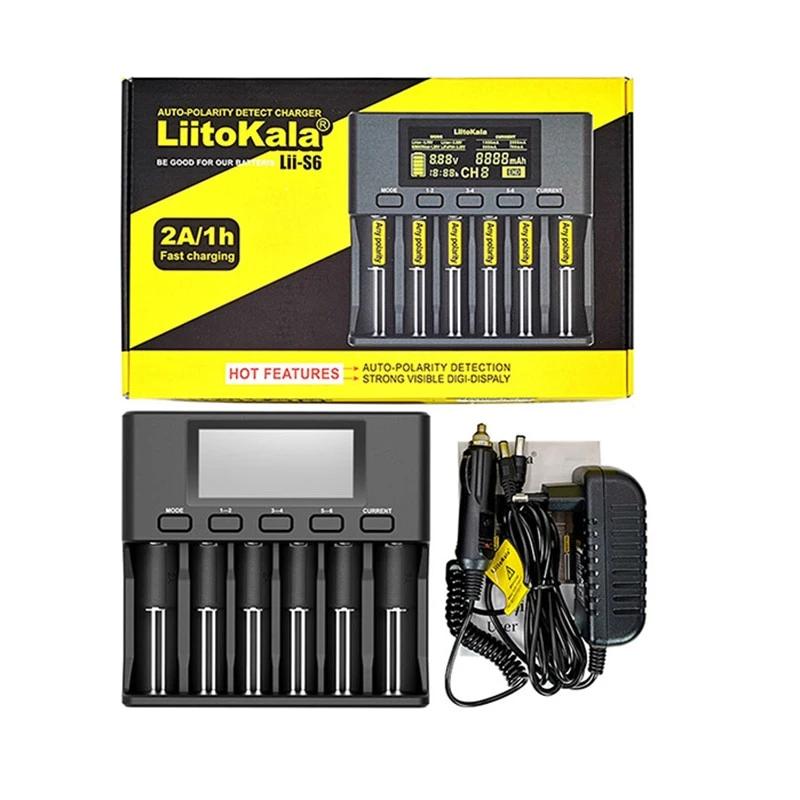

Model Number: Lii-PD4/S1/PL4/S6/500S/500/S4/S2/402/202
-
Use: Standard Battery
-
Package: Yes
| Type | Lii-PD4 Charger, Lii-PL4 Charger, Lii-S6 Charger, Lii-500S Charger, Lii-S4 Charger, Lii-500 Charger, Lii-S2 Charger, Lii-S1 Charger, Lii-402 Charger, Lii-202 Charger |
|---|---|
| Plug | US, EU |
